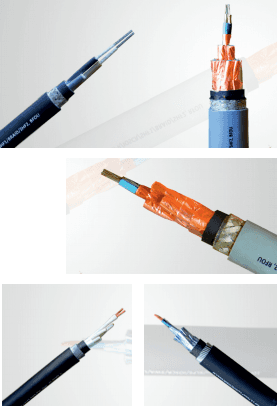

Instrumentation cables are used for carrying data signals from critical instruments used for measurements. Voltage range includes 300/500 V. These cables are manufactured to BS EN 50288-7
Construction:
Annealed Plain Copper Conductor
XLPE Insulation
Armoured or Unarmoured
PVC Outer Sheath
Applicable Standards: BS 5467 / IEC 60502?1 / BS 7889 / Utility Standards
Rated Voltage:
0.6/1.0 (1.2) kV
1.8/3 (3.6) kV
Product Range:
1 core - 50 to 1000 mm2
2 core & 5 core - 1.5 to 120 mm2
3 core & 4 core - 1.5 to 400 mm2
Above 5 core to 48 Cores - 1.5 to 4 mm2
Application - For instrumentation purpose to reduce the cross-talk and to protect signals from outside electromagnetic, electrostatic & radio frequency interference.
