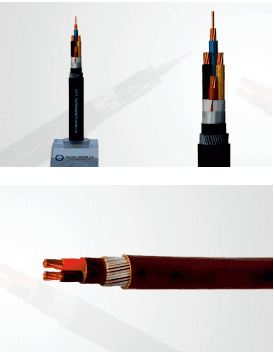

Low voltage cables are most widely used among all cables. Low voltage power cables are used in electric power distribution substations, industrial applications to distribution electric panels, etc. Voltage range includes 0.6/1.0 kV & 1.8/3.0 kV for power cables and 0.6/1.0 kV for control cables.
Construction:
Annealed Plain Copper Conductor
XLPE Insulation
Armoured or Unarmoured
PVC Outer Sheath
Applicable Standards: BS 5467 / IEC 60502-1 / BS 7889 / Utility Standards
Rated Voltage: 0.6/1.0 (1.2) kV , 1.8/3 (3.6) kV
Product Range:
1 core - 50 to 1000 mm2
2 core & 5 core - 1.5 to 120 mm2
3 core & 4 core - 1.5 to 400 mm2
Above 5 core to 48 Cores - 1.5 to 4 mm2
Application - For fixed installation in industrial areas, buildings and similar applications for carrying out electric power and in control circuits.
