Insulating mats.
The insulating mats provide individual and collective protection. Elastomer, they are used to cover the ground for the electrical protection of operators during work or interventions on electrical installations
Standards: IEC 61111/EN 611

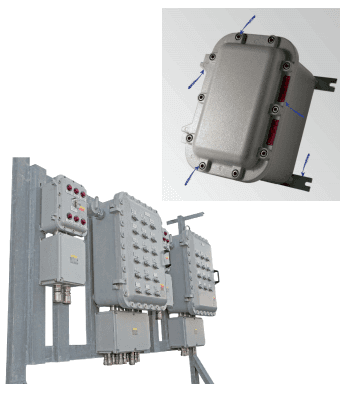

Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible dust is present
Classification: Zone 1, 2, 21, 22.
Material Of Construction: Body and lid in low copper content aluminium alloy. Stainless steel cover bolts. Internal/external earth screws. RAL 7035 epoxy coating. Galvanized steel mounting brackets. Silicon gasket Copper Free Aluminium
Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust)
Certification: ATEX CESI 00 ATEX 036U IEC Ex CES 14.0017U
Standards: CENELEC EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014, EN 60529: 1991 and EUROPEAN DIRECTIVE 2014/34/UE
Application: Oil refinery, Petrochemical, On Shore & Offshore Plants
Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible gases or dust is present
Classification: Zone 1, 2, 21, 22.
Ambient temperature: -40DegC +55DegC (+40DegC)
Material Of Construction: Stainless steel body and lid. Acid/hydrocarbon-resistant gasket. Stainless steel bolts and screws. Impact protection IK10
Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust)
Certification: II 2GD Ex eb IIC T. Gb – Ex tb IIIC T. Db Ip66
Standards: Certification: CESI 03 ATEX 333 (ATEX) IEC Ex CES 13.0001 (IECEx)
Application: Oil refinery, Petrochemical, On Shore & Offshore Plants
Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible gases or dust is present
Classification: Zone 1, 2, 21, 22.
Degree Of Protection: IP66
Material Of Construction: GRP (glass reinforced polyester resin) in RAL 9017 black coating (Ex e) or RAL 5015 blue coating (Ex i) UPON request. Stainless steel bolts and screws. Silicone gasket. Internal/external earth screws.
Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust)
Certification: ATEX CESI 00 ATEX 036U IEC Ex CES 14.0017U
Standards: CENELEC EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014, EN 60529: 1991 and EUROPEAN DIRECTIVE 2014/34/UE
Application: Oil refinery, Petrochemical, On Shore & Offshore Plants11
Insulating Ladders:
A Complete Range with top quality features: Insulation between two steps: 30,000 V (test performed after immersion in water for 24 hours). High mechanical resistance to bending and twisting. Good resistance/weight ratio. High fire resistance. High resistance against bad weather and corrosive elements.
Standards: EN 131
